The Dresser stainless steel waterworks line for utility maintenance, emergency response, and live service connections. Patented wide-range gasket technology — one stocking SKU covers DIP, PVC, AC, HDPE, and pit cast pipe.

Built for utility distribution maintenance crews and emergency response. Stainless steel construction, patented extended-range gaskets, and universal pipe compatibility across the most common North American distribution materials.
Engineered to fit DIP, CIP, PVC, AC, and HDPE in a single sleeve. No more sorting through multiple repair clamp SKUs at the truck or warehouse to find the right one for the pipe in the ditch.
Patented Triple Tap and Quick-Cam gaskets accommodate up to 0.9 in of OD variance per sleeve — covering pit cast tolerances, AC class differences, and DIP / steel discrepancies in one fitting.
Type 304 stainless steel as standard across the line. Type 316 stainless available on request for sewer service or aggressive soil conditions. No carbon steel substrate vulnerable to soil corrosion.
NBR gaskets certified to NSF/ANSI 61 and 372 for drinking water service. EPDM gasket option available for service line, hydrant, and chloramine-resistant applications.
Triple Tap exceeds AWWA C223 (fabricated stainless steel tapping sleeves) and MSS SP-124-2012 standards. Beam-break tested at 1.5x rated pressure on a hydrostatically pressurized 1/8 x 3/16 in groove.
Authorized Dresser distribution out of Houston, Texas — with engineering support, ranged stock for emergency response, and direct factory shipping for the full Dresser stainless steel waterworks portfolio.
Pipe joining, tapping & line stop, service saddles, repair clamps, encapsulation sleeves, and service fittings — the complete Dresser stainless steel waterworks line.
Universal Transition Coupling 2 – 24 in
Stainless steel transition coupling with patented extended-range gasket. Joins different OD pipe materials — ductile iron, cast iron, PVC, AC, steel — in a single fitting. Standard and long-body versions; covers a 0.9 to 2.1 in OD range per size depending on configuration.
Stainless Hot Tap Sleeve 4 – 48 in
Wide-range stainless tapping sleeve for hot taps under pressure. Accepts industry-standard tapping valves via MSS SP-60 recess. AWWA Class D flange standard; ANSI, AWWA C228, C207, and MJ outlet options available. NBR gasket NSF 61/372 certified.

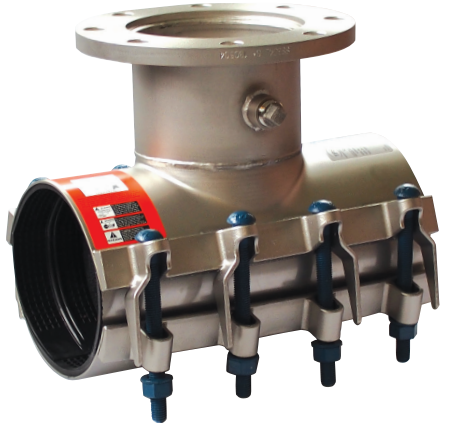

Mechanical Joint Outlet 4 – 48 in
Triple Tap with pre-installed Mechanical Joint outlet (NBR gasket, AWWA C111). Direct valve face to MJ flange face mounting eliminates gaps and ensures perfect cutter alignment. Slotted bolt holes for ease of installation. AIS / BABA available on request.
Threaded or Push Plug 4 – 24 in
Line stop sleeve compatible with common line stopping equipment. Engineered to withstand line stop process forces even during beam-break conditions. ANSI/ASME B16.5 Class 150# slip-on flange in 304 stainless or carbon steel. 3/4 in test outlet for hydrostatic verification.

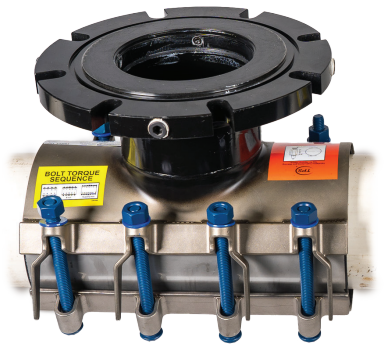

Permanent Line Stop Closure 4 – 12 in
Type H end equipment interface line stop completion plug for permanent closure of Triple Tap line stop sleeves. Ductile iron construction per ASTM A536. Designed to fit common line stopping equipment for clean retrieval after the line stop operation.
Universal 304SS Saddle 2 – 48 in
Universal Type 304 stainless service saddle for service line tapping. Works on DIP, CIP, PVC, AC, steel, and HDPE in one product — cuts saddle inventory by over 70%. Patented Cam Lug System (US Patents 9,970,584 / 10,544,894). Insulating boot on 10 in and larger.
CTS & IPS Hot Tap 3/4 – 6 in
Hot tapping saddles for service connections on copper tubing size (CTS) and iron pipe size (IPS) mains. NBR or EPDM gaskets. CTS configurations cover residential service mains; IPS configurations handle commercial and industrial service taps.
Carbon Steel Coated Bolts 3 – 48 in
The base Quick-Cam configuration. Stainless steel band, ductile iron lugs, fluoropolymer-coated carbon steel bolts. Extended-range gaskets cover 0.9 in OD range. Available in 7-1/2, 10, 12, 15, 20, 24, 30, and 36 in clamp widths for spanning longer pipe damage.
CC or NPT Branch 4 – 12 in
Repair clamp with integrated branch outlet — restores the main and adds a service tap in one fitting. Outlet sizes 1/2, 3/4, 1, 1-1/2, and 2 in. Both CC (corp stop) and NPT (industrial) thread configurations available. The largest variant family in the line at 617 SKUs.
Stainless Bolts 3 – 48 in
Ductile lug Quick-Cam with stainless steel hardware (HDW). The middle-tier upgrade for corrosive soils, brackish water table, or coastal Gulf Coast service where carbon steel bolt corrosion is the long-term failure mode. AIS / BABA available on request.
Full Stainless Construction 3 – 48 in
Full stainless Quick-Cam — 304 stainless band, lugs, bolts, nuts, washers. The premium spec for sewer service, brackish water table, hot soils, brine-affected soil, or any application where long-term corrosion resistance is the controlling design factor.

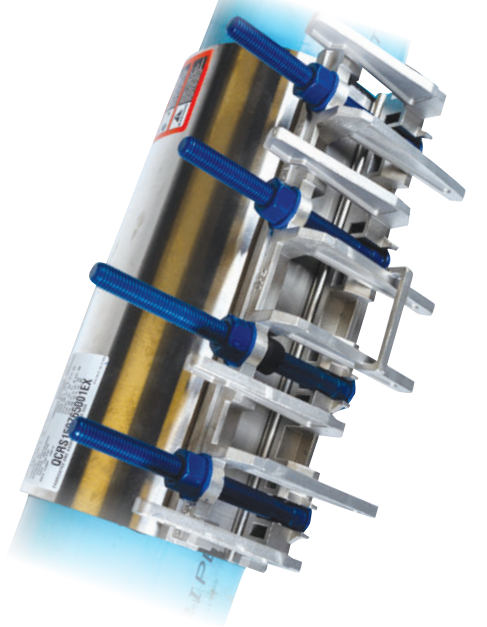

Stainless Repair Clamp + Service Outlet
Full stainless construction with integrated CC or NPT branch outlet. Combines emergency repair, service connection, and full-stainless corrosion resistance in a single fitting. The largest Quick-Cam variant family at 706 SKUs — sized to cover virtually any pipe OD and outlet combination.

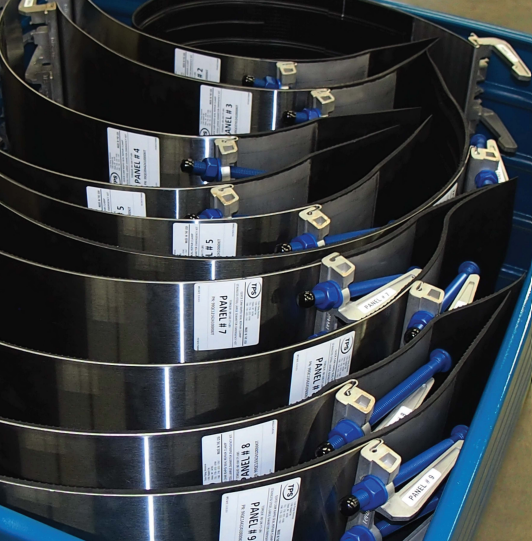

Pre-Configured Emergency Response 2 – 54 in
Pre-built emergency response kit — Quick-Cam repair clamp in 12, 15, or 24 in clamp width sized for the most common main break failures. Configured for distribution maintenance trucks and on-call response crews. Stock these in advance — you don't size during the call-out.
Service Abandonment Repair 4 – 16 in
Specialty wide-width repair clamp (9 in or 15 in) designed for sealing over abandoned corp stops that cannot be removed cleanly. 3 in or 4 in outlet covers the full corp stop housing. Replaces the labor-intensive cutout-and-replace approach for abandoning a service line.
Wide Range Bell Joint Repair 2 – 48 in
Wide-range encapsulation sleeve for permanent repair of bell-and-spigot joints, complete pipe failures, and longitudinal cracks where a short-band repair clamp won't span the damage. Stainless construction; covers DIP and CIP OD ranges in matched pairs at the larger sizes.
Service Line Compression Fittings 1/2 – 2 in
Galvanized steel compression fittings and male adapters for service line work — the volume side of the Dresser water service portfolio. Long-body seal-only configurations 1/2 in through 2 in. Brass-armored conductive Buna N gaskets standard.
Match the failure mode and pipe material to the right Dresser product. The Quick-Cam spec choice (carbon bolts, stainless bolts, all stainless) is driven by long-term soil corrosion conditions — not pressure rating, which is identical across the three configurations.
| Failure Mode / Application | Pipe Material | Recommended Product | Pressure Range | Size Range |
|---|---|---|---|---|
| Distribution main repair — pinhole, split, longitudinal crack | DIP, CIP, PVC, AC, Steel | Quick-Cam (Carbon, SS Bolts, or All SS) | Working pressure varies by pipe | 3 – 48 in |
| Bell joint leak — AC or CIP | AC, CIP | Ultra-Sleeve Encapsulation | Per pipe rating | 2 – 48 in |
| Complete main break — circumferential, beam-break | DIP, CIP, AC, PVC | Ultra-Sleeve OR Quick-Cam (24+ in width) | Per pipe rating | 2 – 48 in |
| Service line tap — new service connection | DIP, CIP, PVC, AC, HDPE, Steel | T3 Wide Range Service Saddle | Up to 250 PSI | 2 – 48 in |
| Hot tap under pressure — service tap | CTS or IPS small main | Quick-Cam Hot Tapping Saddle | Up to 250 PSI | 3/4 – 6 in |
| Hot tap under pressure — large main | DIP, CIP, PVC, HDPE, AC, Steel | Triple Tap Tapping Sleeve | Up to 250 PSI working | 4 – 48 in |
| Hot tap with MJ outlet | DIP, CIP, PVC, HDPE, AC | Triple Tap MJ Tapping Sleeve | Up to 250 PSI working | 4 – 48 in |
| Line stop operation | DIP, CIP, PVC, HDPE, AC, Steel | Triple Tap Line Stop Fitting | Per ANSI 150# flange | 4 – 24 in |
| Line stop completion — permanent closure | (any) | Triple Tap "Type H" Plug | Match parent fitting | 4 – 12 in |
| Mixed-OD pipe joint — transition between materials | Steel x DIP, PVC x DIP, AC x DIP | TX3 Extended Range Coupling | Per configuration | 2 – 24 in |
| Repair + new service in one fitting | DIP, CIP, PVC, AC, Steel | Quick-Cam w/ Outlet (Ductile or All SS) | Per pipe rating | 4 – 12 in |
| Service abandonment — corp stop sealing | DIP, CIP, PVC, AC | Abandoned Corp Stop Clamp | Per pipe rating | 4 – 16 in |
| Service line repair — small diameter | Galvanized steel, copper | Series 6000 Galvanized Fittings | Per fitting rating | 1/2 – 2 in |
| Sewer / corrosive soil — long-term reliability | (any) in aggressive soil | Quick-Cam All Stainless OR T3 in 316SS | Per pipe rating | 3 – 48 in |
A typical municipal water system inventories tapping sleeves by pipe material — one shelf for DIP, another for AC, another for PVC, another for HDPE. Triple Tap's wide-range gasket replaces all of those with one product per nominal diameter. Here's the math.
Up to 0.9 in OD range per nominal size — covers DIP, PVC, AC Class 100/150/200, pit cast, and IPS in many cases. Standard and "OS" (oversized) variants cover the full pit cast and AC ranges.
Tested for beam breakage on simulated 360-degree break test at 1.5 times rated pressure on a test pipe with a 1/8 in wide by 3/16 in deep hydrostatically pressurized groove. Designed to hold during the worst-case rupture event.
A utility that previously stocked 4 tapping sleeves per nominal diameter (DIP, AC100, AC150, PVC) now stocks 1 standard plus 1 "OS" variant. That's 50% less inventory dollars per nominal size with broader application coverage.
Heavy duty 18-8 stainless steel (Type 304). 4 to 8 in diameters use 12 gauge. 10 to 16 in diameters use 11 gauge. 18 to 30 in diameters use 10 gauge. 304 stainless nuts, bolts, washers with fluoropolymer anti-gall coating throughout.
Every fitting in this collection ships with full certification documentation. AIS / BABA-compliant configurations available on request for federally-funded projects.
Triple Tap exceeds AWWA C223 standards for fabricated stainless steel tapping sleeves used on water utility distribution systems.
Triple Tap Class D flange drilled per AWWA C228 standards for stainless steel pipe flanges. ANSI B16.5 also available on request.
T3 Wide Range Service Saddle exceeds AWWA C800 standards for direct-tap and tap-and-cover service line connections.
Triple Tap MJ Tapping Sleeve outlet meets ANSI / AWWA C111 / A21.11 mechanical joint dimensional and pressure standards.
Triple Tap outlets machined per MSS SP-124-2012 with MSS SP-60 recess to accept industry-standard tapping valves from all major manufacturers.
NBR rubber gaskets across the line are certified to NSF/ANSI 61 and 372 for drinking water service. Lead-free per Safe Drinking Water Act.
AIS-compliant and Build America Buy America (BABA)-compliant configurations available on request for federally-funded water infrastructure projects.
Ductile iron lugs on Quick-Cam Ductile Lug variants and Type H completion plugs are manufactured per ASTM A536 ductile iron casting specifications.
Common questions about specifying Dresser stainless steel waterworks for utility maintenance and service line work.
Send us the pipe OD measurement, material, and the nature of the failure or service need — we'll have the right Dresser fitting configured and quoted within 24 hours. Faster for active emergencies.
